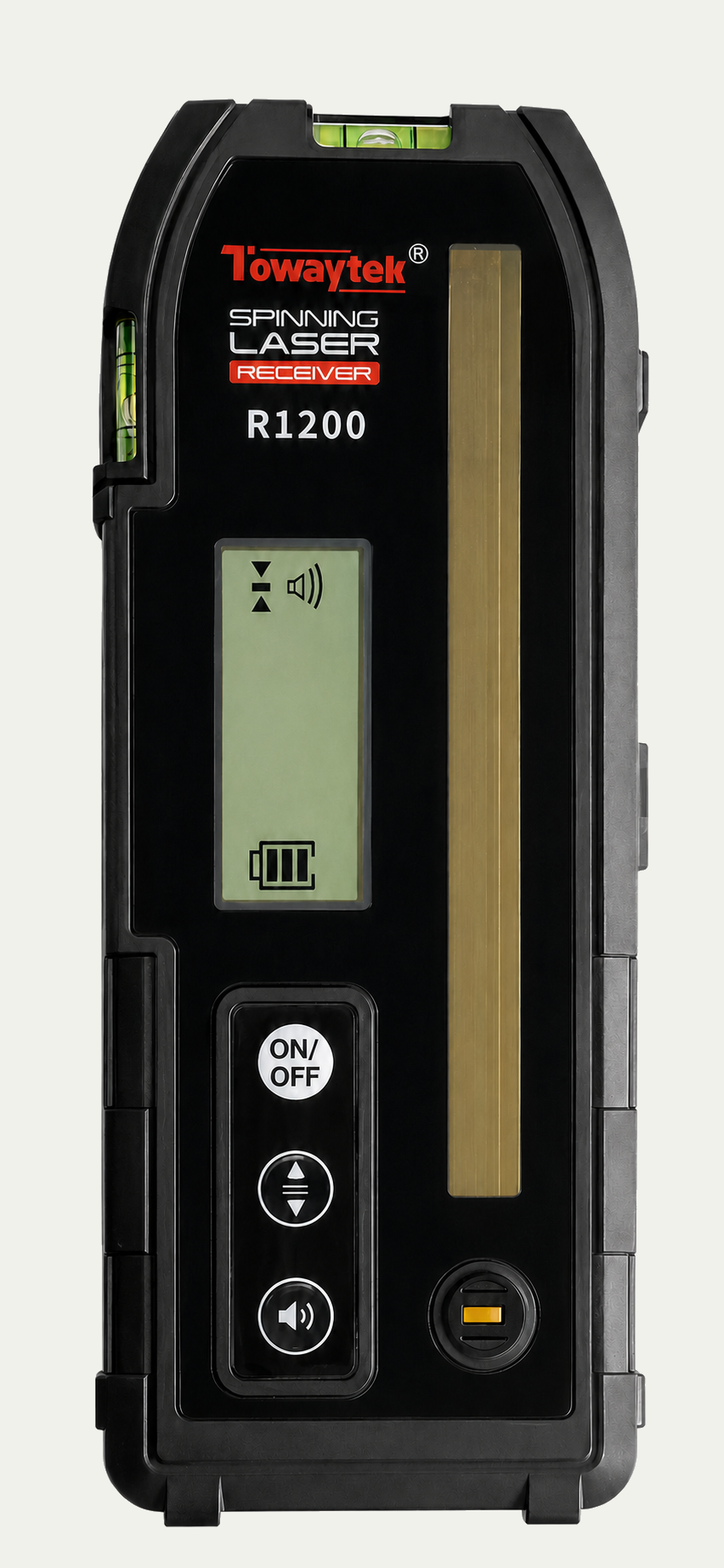

Laser Receiver
R1200
R1200 is a spinning laser receiver with a 2–400 m receiving distance, high-precision ±1 mm and normal-precision ±3 mm indication, dual front and rear displays, red and green laser detection and IP66 protection.
Request Specification
Specifications
Product Specifications
R1200 available Towaytek source information.
| Receiving Distance | 2–400 m |
|---|---|
| Receiving Accuracy | High precision: within ±1 mm of center receiving line; Normal precision: within ±3 mm |
| Receiving Window Height | 120 mm |
| Receiving Angle | ±45° (45° left / 45° right) |
| Spectral Range | 510–530 nm; 630–650 nm |
| Volume | Low / High / Mute (3 levels) |
| Display | Dual front and rear displays |
| Automatic Power-off | Approx. 7 minutes with no operation and no received laser beam |
| Power Supply | 4 x AA alkaline batteries |
| Battery Runtime | Approx. 48 hours |
| Protection Rating | IP66 |
| Product Dimensions | 192 x 72 x 30 mm |
| Product Weight | Approx. 229 g (excluding batteries) |
| Included Accessory | Clamp |
